How to Overclock Bitaxe Gamma

Understanding the BM1370 ASIC

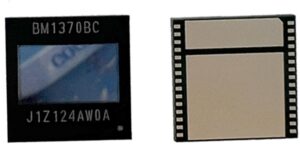

The BM1370 is a SHA-256 ASIC (Application Specific Intergrated Circuit) built using a 3nm process. At stock settings, 525 MHz and 1150 mV; it delivers approximately 1.1 TH/s with an efficiency of 15 J/TH. This baseline already makes it one of the most efficient small-scale Bitcoin mining rigs on the market. However, with controlled overclocking, performance can be increased substantially.

Understanding how to overclock Bitaxe Gamma starts with knowing how the ASIC behaves under different voltages and frequencies. Each chip has a performance ceiling, and identifying it requires both incremental tuning and careful temperature management.

Voltage and Frequency Tuning

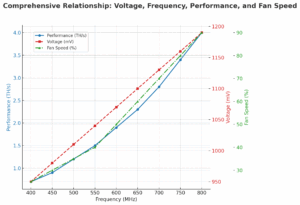

To overclock any ASIC, frequency must be increased. This boosts hashrate but simultaneously demands higher core voltage to remain stable. Voltage and frequency operate along a curve; performance increases taper off while power consumption and heat generation rise sharply. Balancing these factors is key to reliable overclocking.

The Bitaxe allows users to fine-tune frequency in small increments, often 25 or 50 MHz at a time, with voltage adjusted in steps of 25 to 50 mV. This flexibility is what makes learning how to overclock Bitaxe Gamma both rewarding and potentially risky if done without the proper safeguards.

Thermal Behavior and Cooling Solutions

As voltage and frequency climb, heat becomes the main limiting factor. The BM1370 ASIC should ideally be kept below 65°C for 24/7 operation, with 70°C as the upper limit. But cooling needs extend beyond the ASIC. The voltage regulator and surrounding MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistor) can exceed safe temperatures quickly during overclocking.

Cooling the Gamma properly is one of the most important aspects of understanding how to overclock Bitaxe Gamma effectively. Without adequate thermal control, even the best voltage-frequency pairing will eventually result in throttling or hardware degradation.

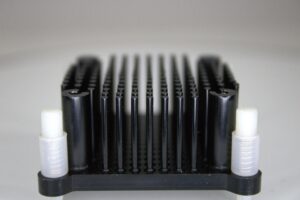

Heatsink Size and Material

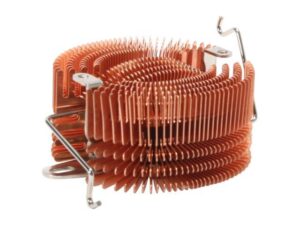

Larger heatsinks with taller fins increase surface area for thermal dissipation. Copper offers higher thermal conductivity than aluminum, but aluminum remains more common due to its lighter weight. Hybrid designs with copper bases and aluminum fins often provide a good balance of conduction and airflow performance.

*NOTE: When assembling or modifying your Bitaxe, spacers may be required to fill gaps between the PCB and heatsink. This ensures the heatsink presses evenly on the ASICs, promoting optimal thermal contact and preventing uneven pressure that could damage components. Always verify proper alignment and contact before operation.

Airflow and Placement

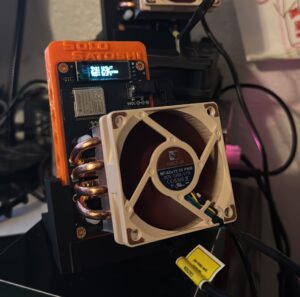

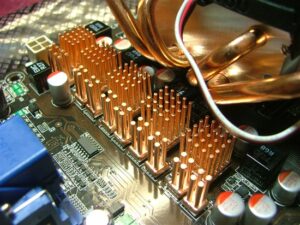

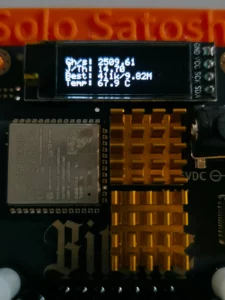

Direct airflow across both the ASIC and the voltage regulation zone is essential. A rear-mounted fan aimed at the VRMs (Voltage Regulator Modules) can reduce temperatures by 10–15°C. Stick-on heatsinks placed on the MOSFETs also help distribute thermal load. Proper fan orientation and case design play a key role in sustained performance.

Thermal Interface Materials

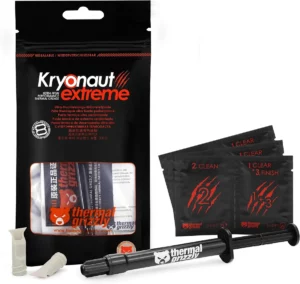

Even the best heatsink will underperform without a proper thermal interface. This is where thermal paste comes in. It fills microscopic gaps between the heatsink base and the ASIC surface, enhancing conductivity and removing trapped air.

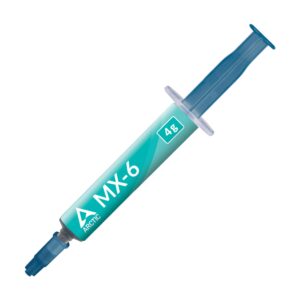

Arctic MX-6 is a strong choice for Bitaxe Gamma overclocking. It provides high thermal conductivity, is electrically non-conductive, and is stable over time. When learning how to overclock Bitaxe Gamma to its full potential, upgrading your thermal paste is a low-cost improvement with high returns.

Apply a small pea sized centered dot of thermal paste on the ASIC, then mount the heatsink with firm, even pressure. Recheck temperatures after booting under load to ensure effectiveness.

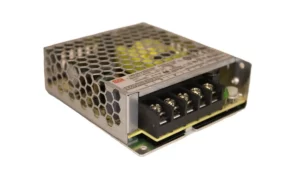

Power Delivery and PSU Selection

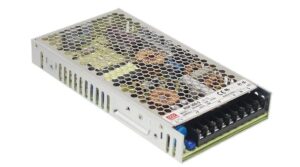

A stable power supply is critical. The Gamma draws between 18W at stock settings and up to 45W when heavily overclocked. Stock power supplies typically fall short at these levels, especially under continuous load. Industrial-grade adjustable DC power supplies rated for 5V and 40–60A are recommended.

Look for models with adjustable voltage output, clean ripple characteristics, and overload protection. Maintaining input voltage around 5.1V under load ensures stability during high-frequency operation.

Without the proper PSU, even a well-cooled ASIC will suffer from crashes or failed boots; an essential point to understand if you’re trying to master how to overclock Bitaxe Gamma responsibly.

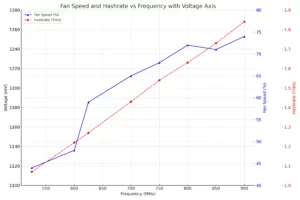

Bitaxe Gamma Overclocking Benchmarks

These figures reflect real-world results gathered from 2025 community testing. They provide reference points for what users can expect at each tuning tier.

Monitoring and Firmware Tools

Managing Bitaxe stability during overclocking requires real-time monitoring. The Bitaxe Gamma is compatible with firmware platforms that include onboard dashboards for temperature, fan control, and performance tuning.

AxeOS, for example, allows adjustments through a web interface and lets users toggle voltage, frequency, and fan curves. Additionally, command-line tools like Bitaxe Bench can run benchmark loops and report stability over long sessions.

Anyone serious about learning how to overclock Bitaxe Gamma should use these tools regularly, not just during setup, but as part of routine system maintenance.

Best Practices and Safety Guidelines

1. Make small adjustments: Increase frequency or voltage in small steps, and test stability before proceeding.

2. Prioritize cooling: Never run over 700 MHz without upgraded thermal solutions.

3. Upgrade your power supply: Insufficient power causes intermittent faults and long-term wear.

4. Use thermal paste: Replace any stock paste with a high-quality compound like MX-6.

5. Benchmark and log: Use logging tools to track performance trends and isolate issues early.

6. Understand limits: Not all chips are equal—some may max out at 750 MHz, others can reach 1000 MHz stably.

Conclusion

Learning how to overclock Bitaxe Gamma is about more than just raising numbers. It’s a technical process that requires an understanding of electrical behavior, heat transfer, airflow dynamics, and component tolerances. Done correctly, overclocking can significantly improve hashrate while keeping hardware stable and reliable.

The open-source nature of the Bitaxe makes it a uniquely flexible platform for miners, educators, and hardware enthusiasts alike. With careful tuning, proper cooling, and responsible power delivery, the Bitaxe Gamma becomes a compact powerhouse, capable of delivering over 2 TH/s on your own terms.

Whether you’re starting from stock or pushing to the edge, mastering how to overclock Bitaxe Gamma is a rewarding and practical skill for any modern miner.
