Description

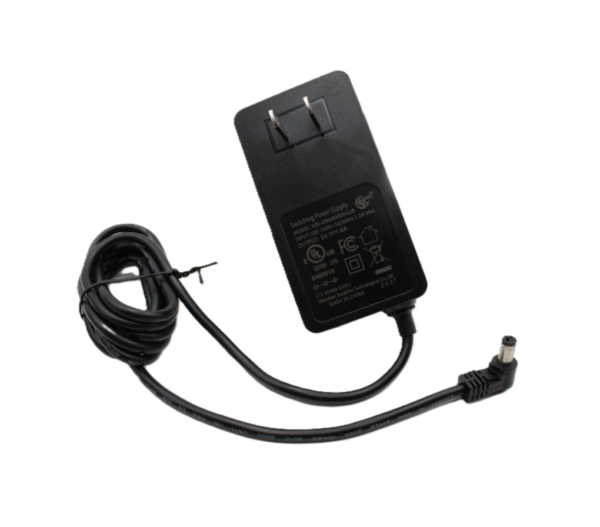

The Bitaxe 30W 5V 6A power supply is a compact regulated adapter for compatible 5V Bitcoin miners with a 5.5 x 2.1mm center-positive barrel input. Its right-angle plug reduces cable strain in compact desktop installations.
Bitaxe 30W Power Supply Specifications
| Specification | Details |
|---|---|
| Output | 5V DC, up to 6A, 30W maximum |
| 80% planning target | 24W / 4.8A continuous |
| DC connector | 5.5 x 2.1mm center-positive right-angle barrel plug |
| Form factor | External regulated wall-plug adapter |
| Plug choices | North America or international EU-UK-AU configuration |
| Best use | Compatible 5V barrel-input single-chip Bitaxe and Nerdaxe miners at stock or moderate settings |
Compatible 5V Bitcoin Miners
| Miner | Compatibility guidance |
|---|---|
| Bitaxe Gamma 602 | Compatible at stock and moderate settings within the 24W planning target. Use the 40W supply for additional overclocking headroom. |
| Bitaxe Supra | Compatible with 5V center-positive barrel-input revisions whose sustained draw remains within the limit. |
| Bitaxe Ultra and Bitaxe Max | Compatible with matching 5V center-positive barrel-input revisions within the power limit. |
| Nerdaxe Gamma | Compatible only when the exact 5V barrel-input configuration and sustained draw fit the limits. The 40W supply provides more margin. |
| Bitaxe Gamma Duo 650 | Use the included or replacement 40W 5V 8A supply instead. The Duo can exceed this adapter conservative continuous target. |
Not compatible with 12V XT30 miners: do not use this adapter with the Bitaxe GT, Naja Duo, NerdQaxe++, Turbo Touch, or Gamma Hex.
30W Rating and the 80% Guideline
The adapter is rated for 30W maximum. For conservative 24/7 planning, 80% equals 24W or 4.8A. A miner can remain below the 30W nameplate and still leave little margin if heavily overclocked. Measure actual consumption instead of relying only on advertised stock values.
For compatible 5V miners that need more headroom, use the Solo Satoshi 40W 5V 8A power supply.
Safe Setup and Monitoring
- Confirm the miner requires regulated 5V DC and a 5.5 x 2.1mm center-positive barrel plug.
- Inspect the adapter, cord, and barrel connector for damage or looseness.
- Connect the barrel plug with AC power disconnected.
- Start the miner at stock settings and confirm normal fan operation and temperature.
- Monitor wall power, voltage stability, adapter temperature, cable temperature, and barrel-plug temperature during sustained use.
- Stop use if the connector or adapter becomes unusually hot, discolored, loose, or odorous.
Helpful Guides and Compatible Hardware
The 80% Rule for Home Mining
Understand continuous-load headroom for adapters, cords, connectors, and miners.
Bitaxe 40W 5V 8A Power Supply
Choose additional current and power headroom for compatible 5V miners and heavier tuning.
Bitaxe Gamma 602 Bitcoin Solo Miner
Review the current single-chip Bitaxe specifications and setup guidance.
5.5 x 2.1mm 16 AWG Barrel Pigtail
Build a compatible 5V branch from an adjustable screw-terminal supply with qualified wiring.
What output does this Bitaxe power supply provide?
What connector does it use?
Which Bitaxe miners are compatible?
Does it work with the Bitaxe Gamma 602?
Does it work with the Bitaxe Duo 650?
Does it work with the Nerdaxe Gamma?
Can I use it with a Bitaxe GT, Naja Duo, NerdQaxe++, or Turbo Touch?
What is the conservative continuous-load target?
Which plug option should I choose?
Can I use it for aggressive overclocking?
How can I verify safe operation?
