Description

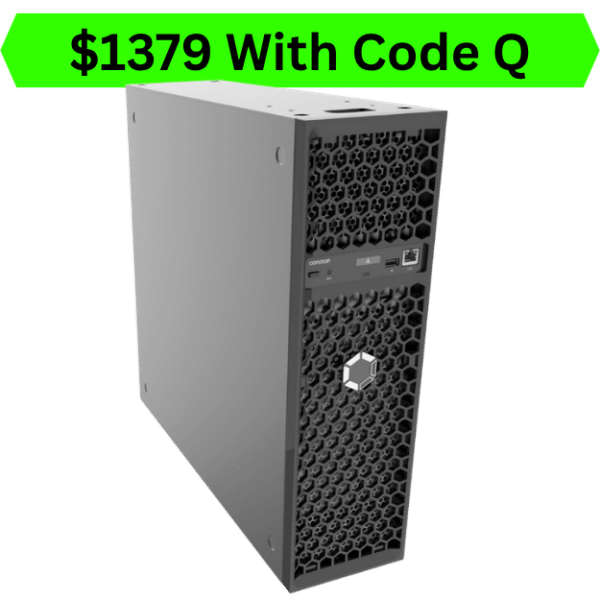

The Canaan Avalon Q is a 90 TH/s Bitcoin ASIC miner designed for residential mining and heat reuse. Canaan rates it at 1,674W and 18.6 J/TH, with Eco, Standard, and Super operating modes, Ethernet, an included Wi-Fi module, and Avalon Family app control.
Solo Satoshi is an authorized Canaan distributor. In-stock orders ship from Conroe, Texas, and local pickup is available.
Canaan Avalon Q Specifications
| Specification | Details |
|---|---|
| Model | Canaan Avalon Q |
| Algorithm | SHA-256 |
| Rated hashrate | 90 TH/s |
| Rated power | 1,674W |
| Rated efficiency | 18.6 J/TH |
| ASICs | 160 chips using a 4 nm process |
| Power modes | Eco 800W, Standard 1,300W, Super 1,600W nominal |
| Input | 110-240V AC, 50/60Hz |
| Connectivity | Ethernet and included Wi-Fi module |
| Management | Local interface and Avalon Family app |
| Cooling | Air cooled |
| Noise | 45-65 dB |
| Operating temperature | -5 to 35 degrees C |
| Dimensions | 455 x 130.5 x 440 mm |
| Net weight | 10.5 kg |
| Warranty | 360-day limited Canaan warranty |
Canaan states that published performance data comes from laboratory testing in a controlled environment. Actual hashrate, wall power, efficiency, temperature, and noise vary with firmware, mode, ambient conditions, voltage, airflow, and the individual unit.
Avalon Q Power Modes
| Mode | Nominal Power | Use |
|---|---|---|
| Eco | 800W | Lower power and noise |
| Standard | 1,300W | Balanced daily operation |
| Super | 1,600W | Maximum nominal performance |
The official headline rating is 90 TH/s at 1,674W. The three mode values are nominal targets, so measured wall power and hashrate can differ.
Electrical Requirements
The Avalon Q accepts 110-240V AC at 50/60Hz. Maximum operation is a continuous high-power load. Confirm that the circuit, breaker, receptacle, wiring, and power cord are appropriate for the selected mode and local electrical code. Avoid extension cords and shared circuits unless they are specifically rated for the continuous load. Consult a licensed electrician when circuit capacity is uncertain.
Read the 80% rule for home mining before operating at higher power.
Noise, Cooling, and Placement
Canaan rates the Avalon Q at 45-65 dB, depending on mode and operating conditions. Eco mode is quieter, while higher modes increase fan speed and heat output. Place the miner on a stable surface with unobstructed intake and exhaust airflow. Keep it dry and operate it within the official -5 to 35 degrees C ambient range.
Wi-Fi, Ethernet, and Setup
- Place the miner where intake and exhaust airflow will remain clear.
- Connect it to a suitable electrical circuit.
- Connect Ethernet or install and configure the included Wi-Fi module.
- Use the Avalon Family app or local management interface to add pool credentials and a Bitcoin payout address.
- Select a power mode and verify hashrate, temperature, fan behavior, and accepted shares.
Use current Canaan instructions for onboarding, diagnostics, and firmware updates. Do not install firmware from an unverified third party.
Pool Mining and Solo Mining
The Avalon Q connects to compatible SHA-256 mining services using pool credentials. Pool mining distributes earnings according to the provider’s rules, fees, payout threshold, and your accepted work.
Solo mining is also possible through a compatible solo endpoint. Finding a block is probabilistic and never guaranteed, even at 90 TH/s. Use current network data in the solo mining odds calculator instead of relying on a fixed time estimate.
Avalon Q Profitability and Electricity Cost
Mining results depend on achieved hashrate, wall power, electricity price, network difficulty, Bitcoin price, pool terms, fees, and uptime. No fixed profit or payback period is guaranteed. Use the Bitcoin mining calculator with the selected mode and your current electricity rate.
Using the Avalon Q as a Hashrate Heater
Nearly all electrical energy consumed by an air-cooled miner becomes heat in the room. At higher modes, the Avalon Q can provide roughly 1.3 to 1.67 kW of heat while mining. Heat reuse may offset electric resistance heating during cold weather, but it does not eliminate the miner’s electricity cost.
What Is Included?
- 1x Canaan Avalon Q Bitcoin miner with integrated power system.
- Included Wi-Fi module.
- North America AC power cable.
- Access to the Avalon Family app and local management interface.
UK, EU, and other regional power cables are not included. A suitable electrical circuit, network service, Bitcoin payout address, and mining-pool account are required.
Warranty and Support
Canaan lists a 360-day limited warranty beginning with the device’s first registration. Coverage applies to qualifying product failures and excludes human-caused damage, subject to Canaan’s current policy and service determination. Solo Satoshi can assist with proof of purchase and the claim process.
Canaan Support Resources
Why Buy From Solo Satoshi?
- Authorized distributor: Solo Satoshi sources eligible Avalon hardware through Canaan.
- Same-day shipping: In-stock orders placed before 12 PM CT ship the same business day from Conroe, Texas.
- Local pickup: Pickup is available at the Conroe storefront.
- Specialist support: Get help with setup, pool configuration, power planning, and warranty coordination.
- Established seller: More than 60,000 devices have shipped to customers in over 70 countries.
