Thermalright TL-9015B 92mm Slim PWM Fan

(2 customer reviews)

$11.99

The Thermalright TL-9015B is a slim PWM fan for compatible miner cooling setups.

  • Condition: New
  • Specifications: 92 × 92 × 15 mm, 12 V, up to 2,700 RPM, and 42.58 CFM; manufacturer rates noise at up to 22.4 dBA.
  • Warranty: Six-month limited Solo Satoshi warranty from delivery; we handle claims.
  • Returns: Eligible unused items in original, unopened packaging may be returned within 14 days of the order date, subject to our Return & Warranty Policy.
  • Ships from: Conroe, Texas, USA. In-stock orders placed before 12 PM Central Time ship the same business day.
In stock

    Description

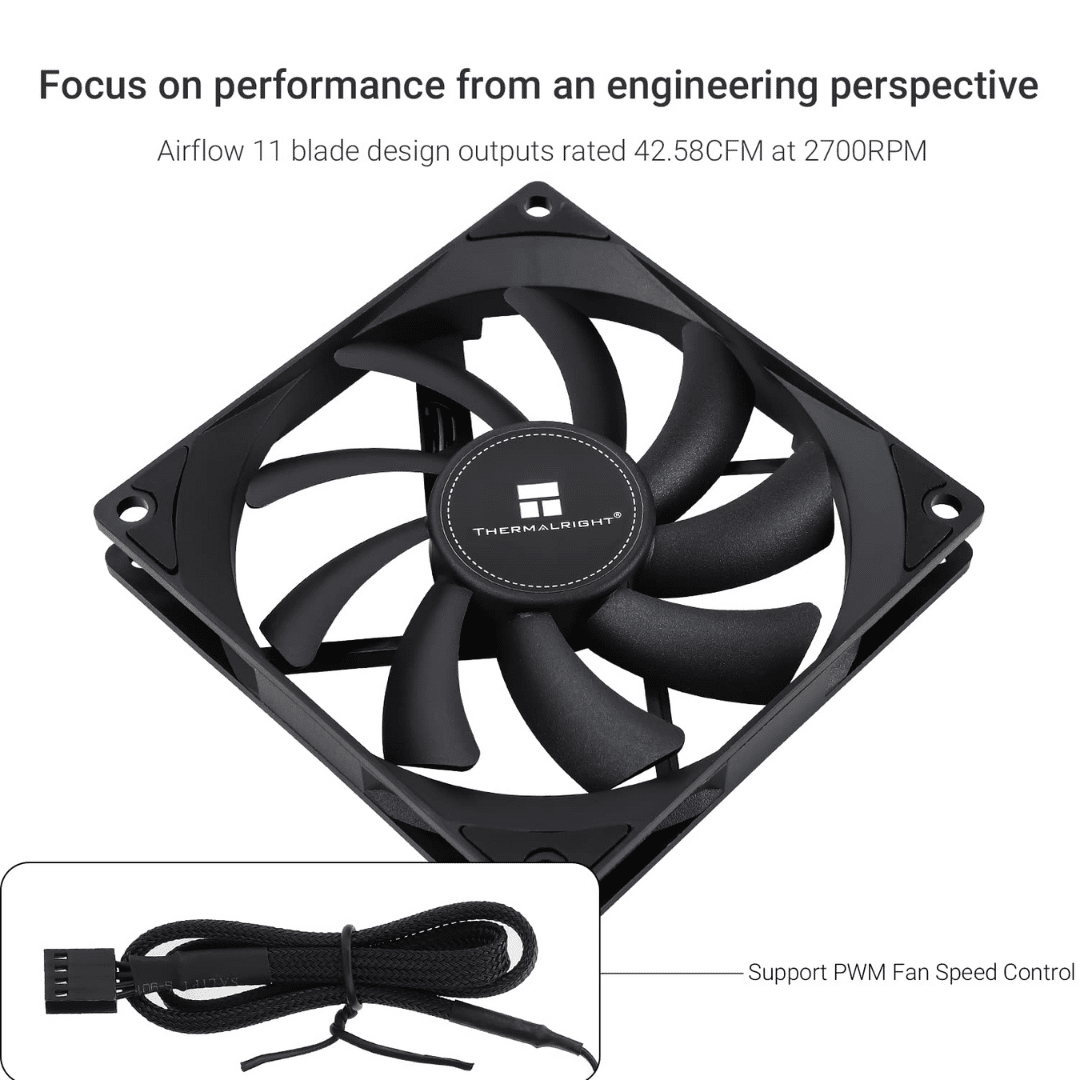

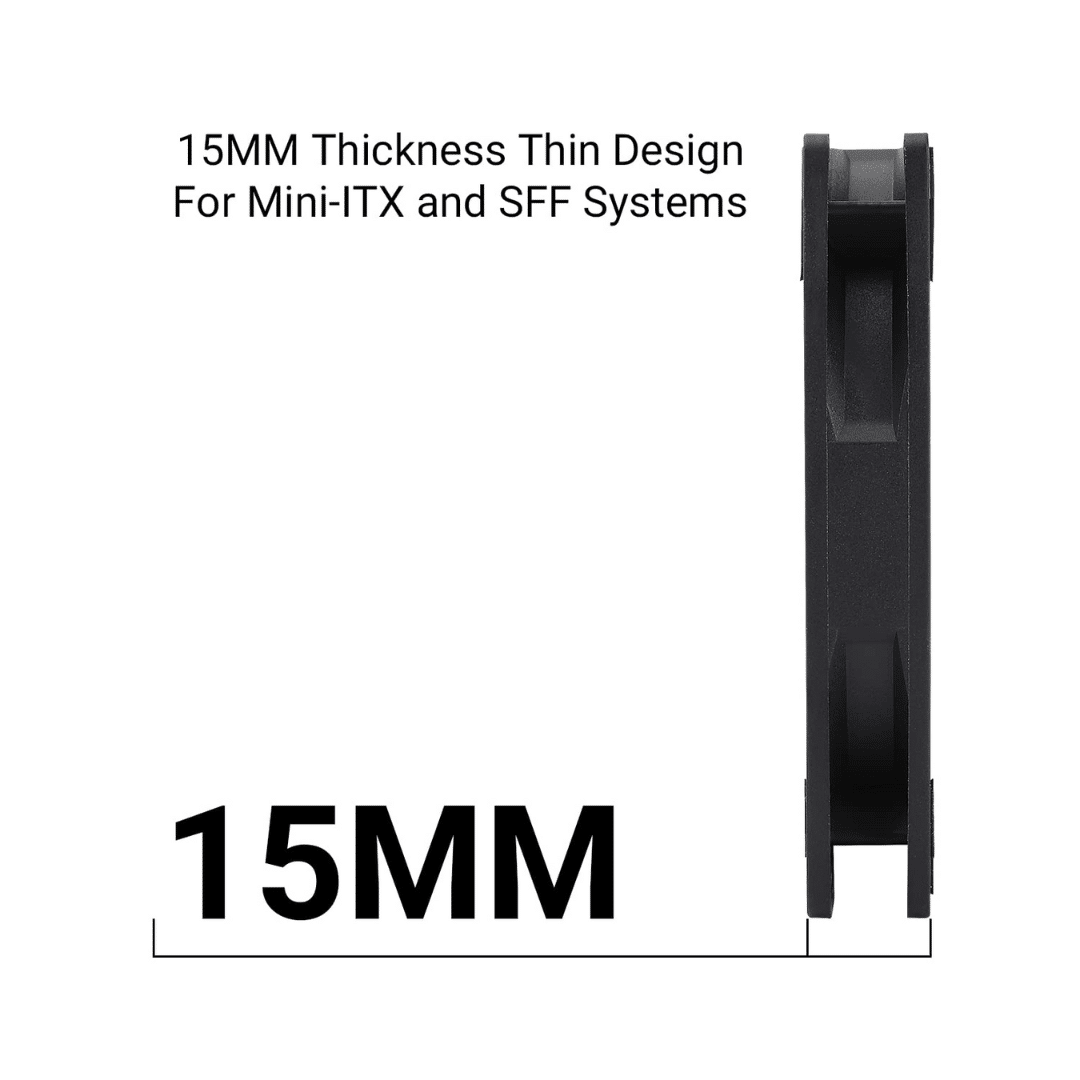

    The Thermalright TL-9015B is a 92 × 92 × 15 mm slim 12V PWM fan for compatible Bitaxe Naja Duo and NerdQaxe++ cooling setups. Its 15 mm frame saves clearance while the 4-pin connection provides PWM speed control and tachometer feedback when the miner and firmware support them.


    Thermalright TL-9015B Official Specifications

    Specification Manufacturer-published value

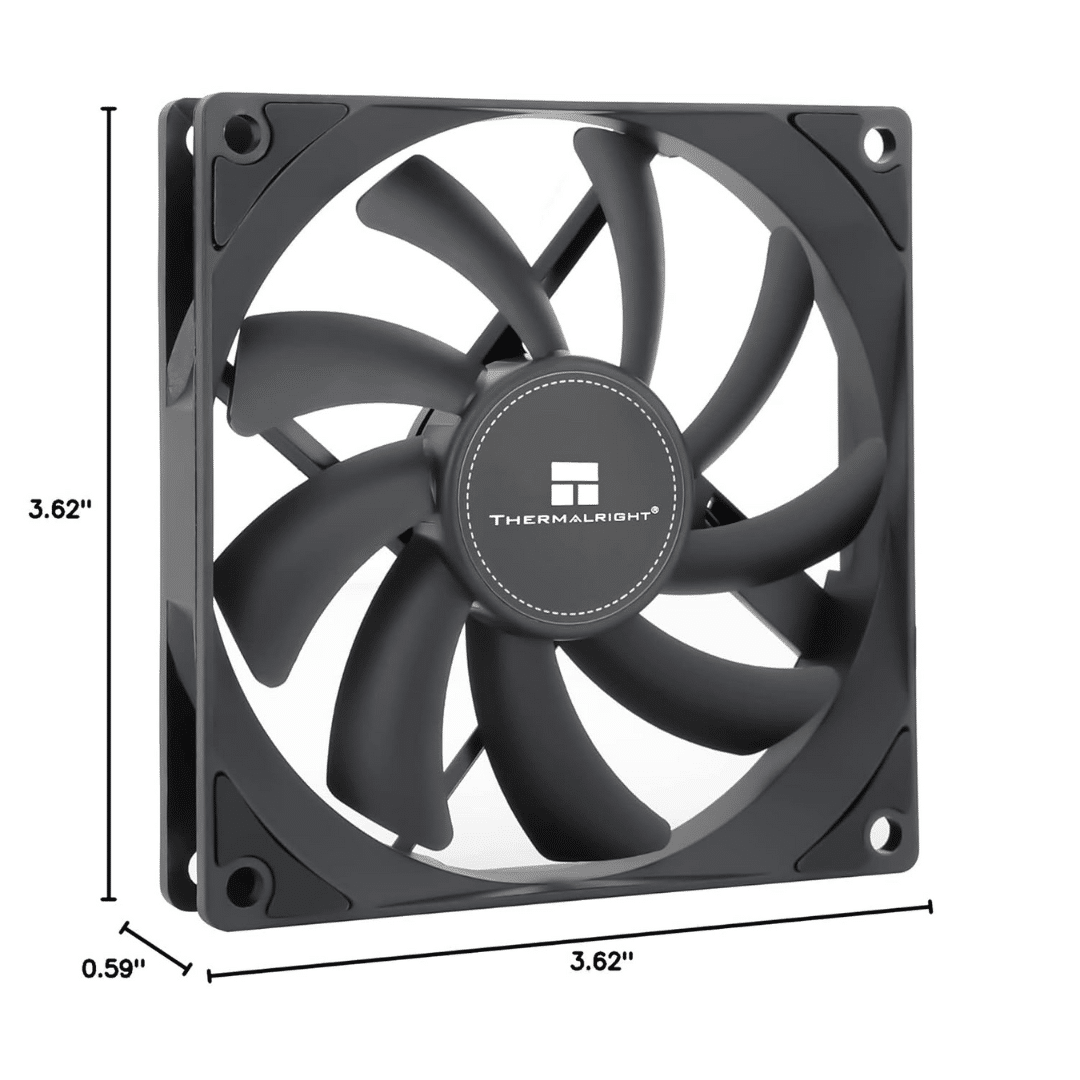

    Dimensions 92 × 92 × 15 mm
    Weight 55 g
    Rated speed 2700 RPM ±10% maximum
    Airflow 42.58 CFM maximum
    Static pressure 1.33 mm H₂O maximum
    Noise level 22.4 dBA maximum
    Rated current 0.18 A
    Connector 4-pin PWM
    Bearing Hydraulic bearing
    Color Black

    Compatible Bitcoin Miners

    Miner Use Verification before installation
    Bitaxe Naja Duo Slim 92 mm cooling-fan replacement or upgrade Confirm the bracket, 12V PWM header, connector orientation, and cable clearance for the exact build.
    NerdQaxe++ 92 mm slim cooling-fan replacement or upgrade Confirm the board revision, mount, 12V 4-pin pinout, and that the 15 mm frame clears the enclosure.

    This listing does not claim universal compatibility with every Bitaxe, Nerdaxe, or NerdQaxe. Fan voltage, connector wiring, mounting geometry, and enclosure clearance vary by model and revision.


    Installation and Airflow

    1. Shut down the miner, disconnect power, and let the heatsink cool.
    2. Photograph the existing fan’s connector orientation and cable routing.
    3. Verify the replacement header supplies 12V and follows the correct 4-pin PWM pin order.
    4. Install the fan so airflow moves through the heatsink in the intended direction. The frame struts generally identify the exhaust side.
    5. Use the correct fasteners without flexing the fan frame or contacting the PCB.
    6. Route the cable away from blades, heatsink fins, and hot components.
    7. Power on at stock settings and confirm RPM feedback, airflow, ASIC temperature, regulator temperature, and stable accepted shares.

    The published 22.4 dBA figure is a manufacturer maximum under its measurement conditions; perceived noise changes with speed, mounting, turbulence, enclosure resonance, and distance.


    What’s Included

    • 1 × Thermalright TL-9015B black 92 mm slim 4-pin PWM fan

    Not included: miner, custom bracket, adapter cable, fan hub, or installation tools.


    Warranty & Returns

    Solo Satoshi provides a 6-month limited warranty from delivery and handles warranty claims. See our Return & Warranty Policy for details.

    Eligible unused items may be returned within 14 days of the order date, subject to the conditions and fees in our Return & Warranty Policy.


    Helpful Guides

    AxeOS Guide

    Configure a compatible miner and monitor hashrate, fan speed, temperature, power, and errors.
