Introduction
Many people who get into Bitcoin home mining eventually inspect an ASIC chip up close. An ASIC, short for application-specific integrated circuit, is a chip built to do one job extremely well. In a Bitcoin miner, that job is hashing, which is the repeated computation used to secure the Bitcoin network. When you look closely at an ASIC chip package, you may notice spots, streaks, or cloudy marks around the edges of the shiny square in the center. Beginners often assume these visual imperfections mean the chip is damaged or lower quality.
In most cases, these marks are cosmetic. They come from normal semiconductor packaging processes that bond, seal, and protect the chip. One common material that can create visible residue is glass frit, a finely ground glass powder mixed into a paste. Glass frit is used in packaging to create strong seals, often called glass frit bonding or glass soldering. This approach is widely used in wafer-level packaging because it can produce robust, hermetic seals at temperatures below about 450°C.
This article explains what glass frit is, why it can appear near the perimeter of a silicon die, and how to interpret what you see on an ASIC chip in a Bitcoin miner. It also clarifies a key point: when two miners perform differently, the cause is far more likely to be another important factor that we’ll cover further in this artile.
Glass Frit in an ASIC Chip Package: A Beginner-Friendly Overview
Start with a few definitions that make the rest of the topic much easier.

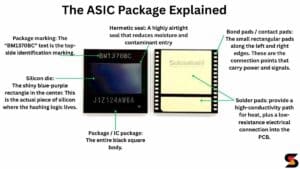

- Silicon: The shiny center piece of your ASIC chip, the semiconductor used to build transistors.
- Die: The small piece of silicon that contains the circuits. A large silicon wafer is cut into many dies.
- Package: The structure that holds the die and provides electrical connections to the circuit board.
- Hermetic seal: A highly airtight seal that reduces moisture and contaminant entry.
Glass frit is essentially a glass-based paste used as a bonding or sealing agent. In many packaging flows, the frit is deposited in a controlled ring pattern, sometimes called a seal ring or seal frame. Screen printing is widely described as the main method for applying glass frit paste in wafer-level processes, and more precise non-contact methods such as jetting can also be used. After deposition, the assembly is heated so the glass softens, flows, and bonds, then solidifies into a durable seal. This is why glass frit bonding is often highlighted as a practical approach for wafer-level encapsulation in MEMS and other high-reliability devices.
A useful real-world comparison is caulking around a sink. The caulk line is laid down to seal out water, then smoothed into place. Even with careful work, a small bead can squeeze out at corners or edges. The seal still works, and the extra material is mostly a visual detail. Glass frit behaves similarly. It is applied in a pattern, then it flows during heating. If a tiny amount spreads beyond the intended boundary, it can leave a visible trace.
This is why many “imperfections” around the edge of an ASIC die are not defects in the circuits. They are signs that a sealing or bonding material did what it is designed to do, which is to flow and bond, with a small amount of overflow or residue.
Sign up for our VIP subscriber list and receive newsletters, discounts, giveaways, and the best deals on Bitcoin home miners!
Why Bitcoin Miners See Spots Near Silicon Edges: Glass Frit Overflow and Normal Variation
If you are looking at a Bitcoin miner ASIC chip and you see spots around the die perimeter, the most common explanation is benign process residue. In glass frit bonding, overflow can occur if the deposited volume is slightly high, the application is uneven, bonding pressure is higher than ideal, or the temperature profile changes the viscosity of the molten glass. Wikipedia’s overview of glass frit bonding explicitly notes the risk of glass material flowing into structures as one of the technique’s drawbacks, which reflects a real process control challenge.
Here is what glass frit residue typically looks like in a way beginners can recognize:
- Edge confined: Marks tend to sit near the perimeter of the die rather than across the entire surface.
- Glassy or cloudy: The residue can look slightly translucent, milky, or reflective depending on lighting.
- Corner emphasis: Corners can show more accumulation because flow patterns often collect there.
Another everyday analogy is hot glue squeeze-out. If you glue two parts together and clamp them, a small bead of glue pushes out along the seam. The bead does not mean the joint is weak. It often means the joint is fully filled. Glass frit overflow is similar. It is a sign that a material flowed during bonding.
For Bitcoin home mining, this matters because miners sometimes link appearance to performance. A chip with more visible edge residue can still perform perfectly. A chip with a pristine appearance can still hash slightly worse than another unit. Appearance is not a reliable performance indicator when the marks are cosmetic.
A practical warning is also important. Beginners sometimes try to scrape the die or clean it with solvents. This is risky. The die surface has thin protective layers, and physical abrasion can cause real damage. Solvents can also leave residues or wick into areas they should not reach. If a miner is functioning normally, the safest action is usually to leave cosmetic residue alone.
If It Is Cosmetic, Why Do Two ASIC Chips Perform Differently?
The most common explanation is the silicon lottery.
The silicon lottery is shorthand for natural chip-to-chip variability. Modern chips contain billions of transistors, and those transistors are so small that tiny manufacturing differences change how they behave. Two terms help explain this in beginner language:
- Threshold voltage: The point at which a transistor reliably turns on. If a transistor needs slightly more voltage to switch cleanly, the chip may require higher voltage overall to remain stable at a given frequency.
- Leakage: Small unwanted current that turns into heat, especially as temperature rises.

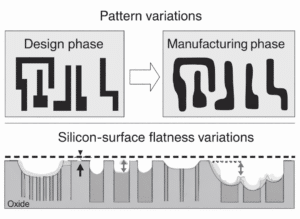

Academic research on nanoscale transistors shows that threshold voltage variation is strongly affected by random dopant fluctuations and line-edge roughness. In simple terms, “random dopant” refers to tiny statistical differences in how many dopant atoms land in a region, and “line-edge roughness” refers to microscopic irregularities in printed feature edges. These effects shift transistor behavior and can change speed and power characteristics from chip to chip.
