Thermalright AXP90-X47 Full Copper Heatsink + 92mm PWM Fan

Description

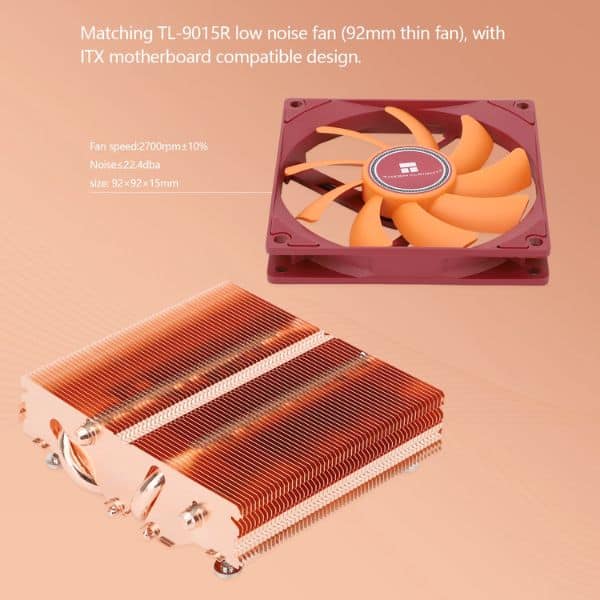

The Thermalright AXP90-X47 Full Copper combines a nickel-plated C1100 pure-copper heatsink with a 92 mm Thermalright TL-9015R slim PWM fan. Its four 6 mm heat pipes, dense copper fin stack, and 47 mm total installed height make it a compact cooling upgrade for compatible processors and home-mining hardware.

The specifications below follow Thermalright’s current published product data. Real temperatures depend on mounting pressure, contact area, thermal compound, board geometry, fan control, workload, ambient temperature, and enclosure airflow; a fixed temperature reduction is not guaranteed.

Thermalright AXP90-X47 Full Copper Specifications

Why Full Copper Matters

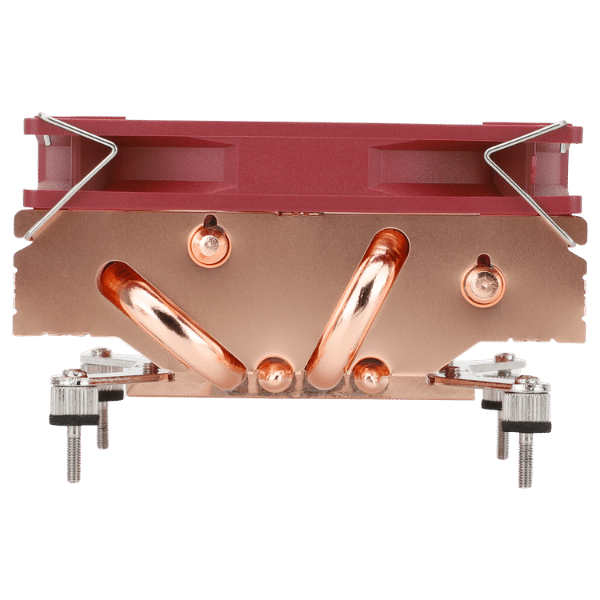

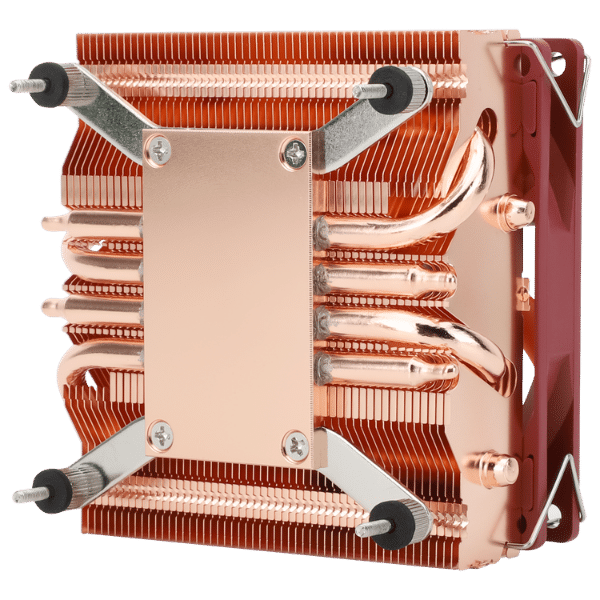

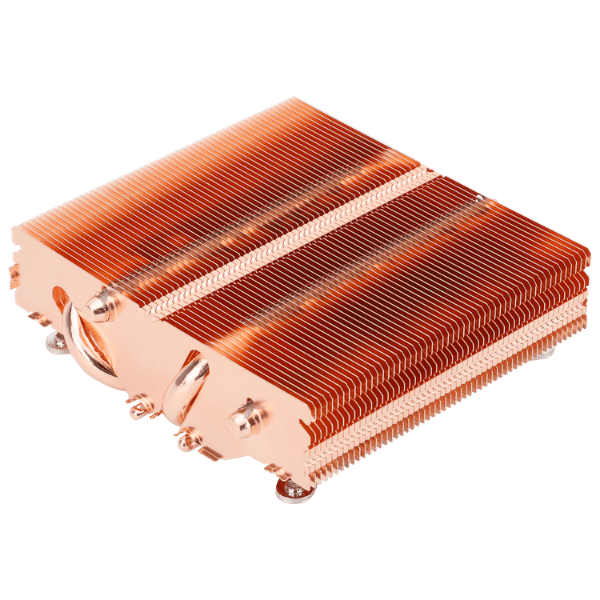

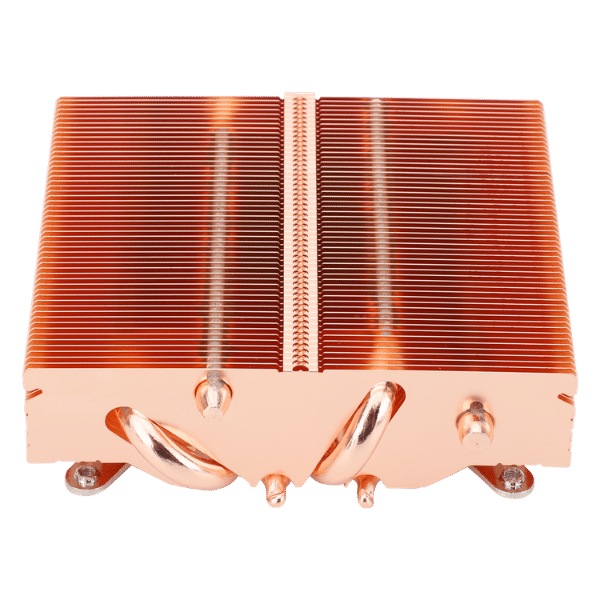

The base, heat pipes, and fin stack form a high-mass copper heat-transfer path. The nickel-plated surface helps protect the copper while preserving the cooler’s distinctive full-metal construction. At 520 g with its fan, this model is substantially heavier than an aluminum-fin low-profile cooler, so secure mounting and proper board support matter.

A full-copper cooler can provide useful thermal capacity, but material alone does not guarantee a particular ASIC or CPU temperature. Contact quality and airflow remain just as important.

Compatibility and Fit Checks

With the supplied Thermalright hardware, the AXP90-X47 Full supports Intel LGA 115X, 1200, 1700, and 1851 plus AMD AM4 and AM5. When adapting the cooler to Bitcoin-mining hardware, compatibility is determined by the exact board, hole pattern, back-side clearance, contact surface, fan header, and any miner-specific bracket or mounting hardware.

This cooler fits the NerdQaxe++ Bitcoin Solo Miner and the Bitaxe Naja Duo. Some owners also install it on the Bitaxe GT Gamma Turbo using compatible 3D-printed mounting brackets. Those Bitaxe GT brackets are not included with this heatsink and must match the exact miner revision and cooler mounting pattern.

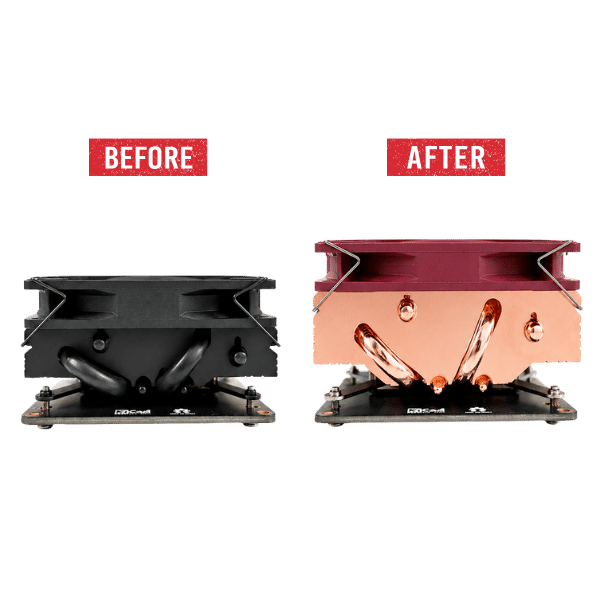

For these miners, the full-copper heat path, four heat pipes, and 92 mm PWM fan make the AXP90-X47 Full Copper a good cooling upgrade over smaller stock cooling assemblies. The actual improvement still depends on correct mounting, thermal contact, fan control, tuning, and surrounding airflow.

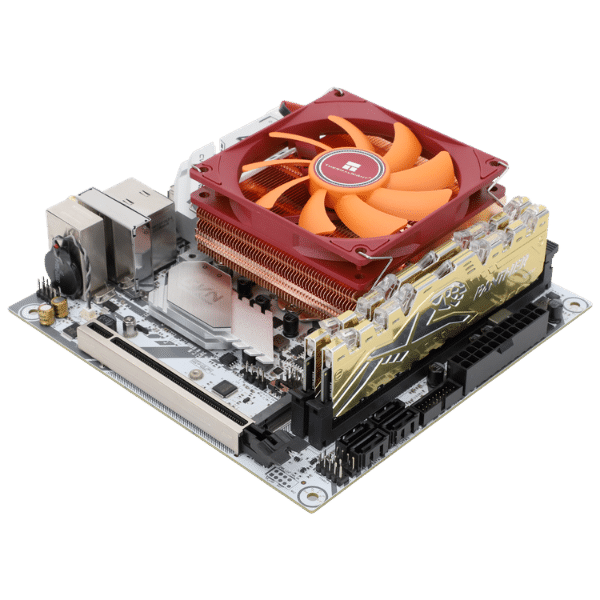

These confirmed applications do not make the cooler universal. Compare measurements and mounting requirements before purchase, especially when a board has tall capacitors, VRMs, displays, or connectors near the ASIC area.

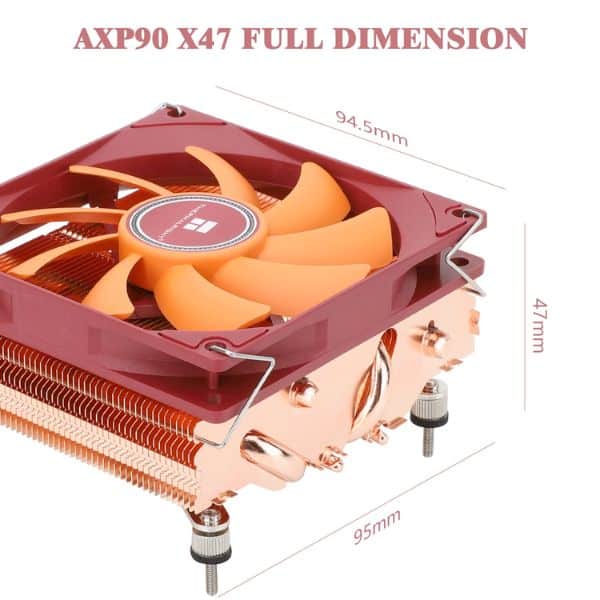

• Confirm at least 47 mm of height clearance for the assembled cooler and fan.
• Confirm the board can safely support a 520 g cooler.
• Confirm the 92 mm fan footprint does not obstruct nearby components.
• Confirm the fan header supports a 12V, 4-pin PWM fan drawing 0.18A.
• Use the correct backplate, fasteners, insulation, and mounting pressure for the target hardware.

Installation and Thermal Setup

1. Power down the device, disconnect all power sources, and allow components to cool.
2. Verify the mounting plan and component clearance before removing the existing cooler.
3. Clean the contact surfaces with high-purity isopropyl alcohol and a lint-free material.
4. Apply an appropriate amount of thermal compound for the size and shape of the contact surface.
5. Seat the cooler flat and tighten the correct fasteners gradually in a cross pattern.
6. Connect the TL-9015R to a compatible 12V 4-pin PWM header.
7. Start at stock settings and monitor temperature, fan speed, stability, and board clearance before tuning.

For CPU-socket installation, use the official AXP90-X47 Full Copper installation manual. Miner-board installations may require different hardware and should follow the board or adapter maker’s instructions.

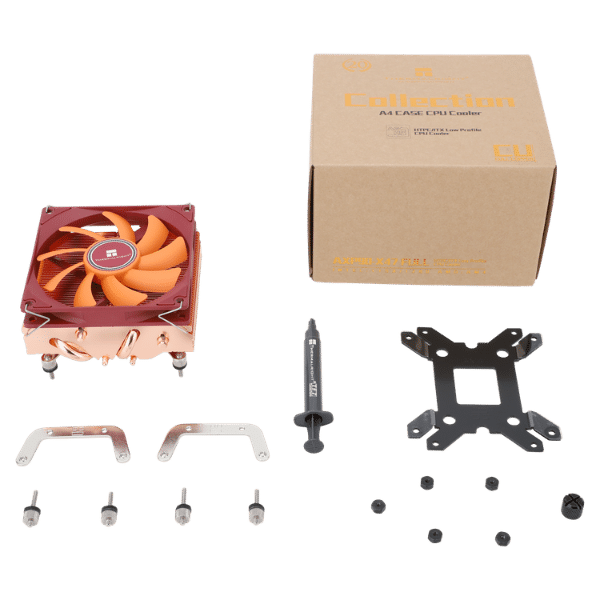

What’s in the Box

• 1 × Thermalright AXP90-X47 Full Copper heatsink

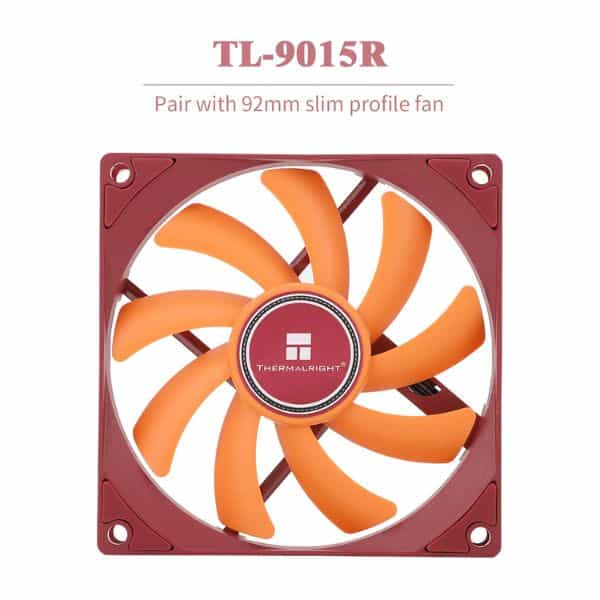

• 1 × Thermalright TL-9015R 92 mm slim PWM fan
• 1 × Intel/AMD mounting-hardware set and backplate
• 1 × Thermalright thermal-compound syringe
• 1 × installation guide
