Description

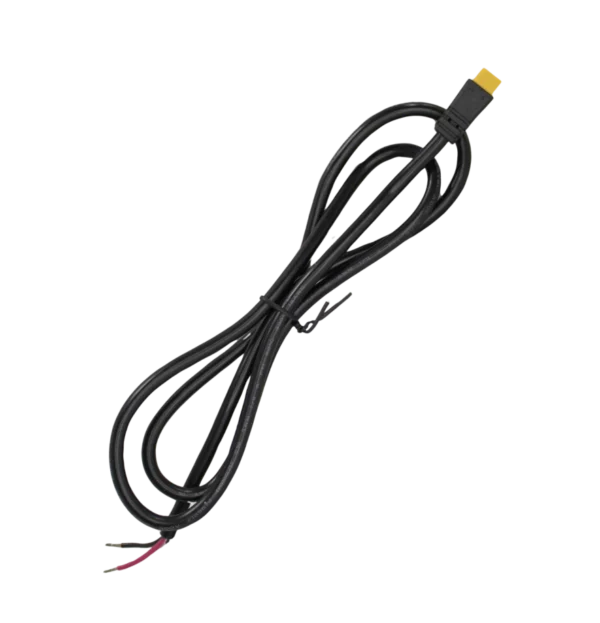

This one-meter XT30 female pigtail provides a prepared DC lead for compatible 12V Bitcoin miners. It is designed for integration with a regulated screw-terminal supply and a correctly protected DC distribution system; it is not for direct connection to AC mains.
XT30 Female Pigtail Specifications
| Specification | Details |
|---|---|
| DC connector | XT30 female |
| Polarity | Red V+ and black V− as shown in the manufacturer drawing |
| Cable | UL2464 two-conductor round cable, 16 AWG |
| Length | 1000 ± 20 mm |
| Lead preparation | Red and black conductors, stripped and tinned approximately 5 ± 1 mm |
| Application | Nominal 12V DC miner branch from a compatible regulated supply |
Compatible 12V XT30 Bitcoin Miners
| Miner | Compatibility note |
|---|---|
| Bitaxe GT Gamma Turbo 801 | 12V XT30 input; verify polarity, power-supply capacity, and cable temperature at the intended settings. |
| NerdQaxe++ Revision 7 | 12V XT30 input. Higher tuning levels can require substantially more power than stock operation. |
| Bitaxe Naja Duo 1201 | 12V XT30 input; size the entire branch for the miner’s configured load and cooling. |
| Bitaxe Turbo Touch | 12V XT30 input. This pigtail is useful only when building a separate compatible DC supply harness. |
Not for 5V barrel-input miners: do not use this cable with the Bitaxe Gamma 602, Gamma Duo 650, Nerdaxe Gamma, or Bitaxe Supra. XT30 shape alone does not define safe voltage or polarity.
Compatible Power Supplies
- Mean Well LRS-350-12 348W 12V power supply for an appropriately sized single- or multi-miner 12V system.
- Mean Well LRS-600-12 600W 12V power supply for engineered high-current distribution with individual protected branches.
The 12.4V 10A external XT30 power supply already includes an XT30 output and normally does not require this pigtail.
Safe DC Harness Installation
- Disconnect AC input and prove the supply is de-energized.
- Set and meter the DC output before connecting a miner.
- Verify XT30 polarity at the connector; never rely on wire color alone.
- Use secure terminals sized for 16 AWG and the supply terminal block.
- Protect each miner branch with a correctly sized fuse or breaker near the source.
- Provide strain relief and keep the connector clear of metal surfaces and fan blades.
- Begin at stock settings, then monitor voltage drop, connector temperature, power draw, and miner stability under sustained load.
Do not derive a safe continuous current from wire gauge alone. Connector quality, termination, cable length, ambient temperature, bundling, PSU rating, and miner load all affect the safe system limit.
Helpful Guides and Compatible Hardware
Mean Well LRS-350-12 12V Power Supply
A right-sized 12V screw-terminal source for compatible XT30 miners and protected branches.
Mean Well LRS-600-12 12V Power Supply
A high-current 12V source that requires engineered distribution and individual branch protection.
12.4V 10A XT30 Power Supply
A ready-made external supply with XT30 output for one compatible miner; this pigtail is normally unnecessary.
The 80% Rule for Miner Power Supplies
Plan continuous-load headroom, wiring, connections, ventilation, and protection before powering miners.
What wire gauge does this pigtail use?
Which miners are compatible?
Which power supplies can I use?
Do I need it with the 12.4V 10A external XT30 power supply?
Can I use it with a Bitaxe Gamma 602 or Gamma Duo 650?
Is red positive and black negative?
How many miners can one Mean Well supply run?
Does 16 AWG guarantee a particular current rating?
Are ring or fork terminals included?
What should I inspect after installation?
